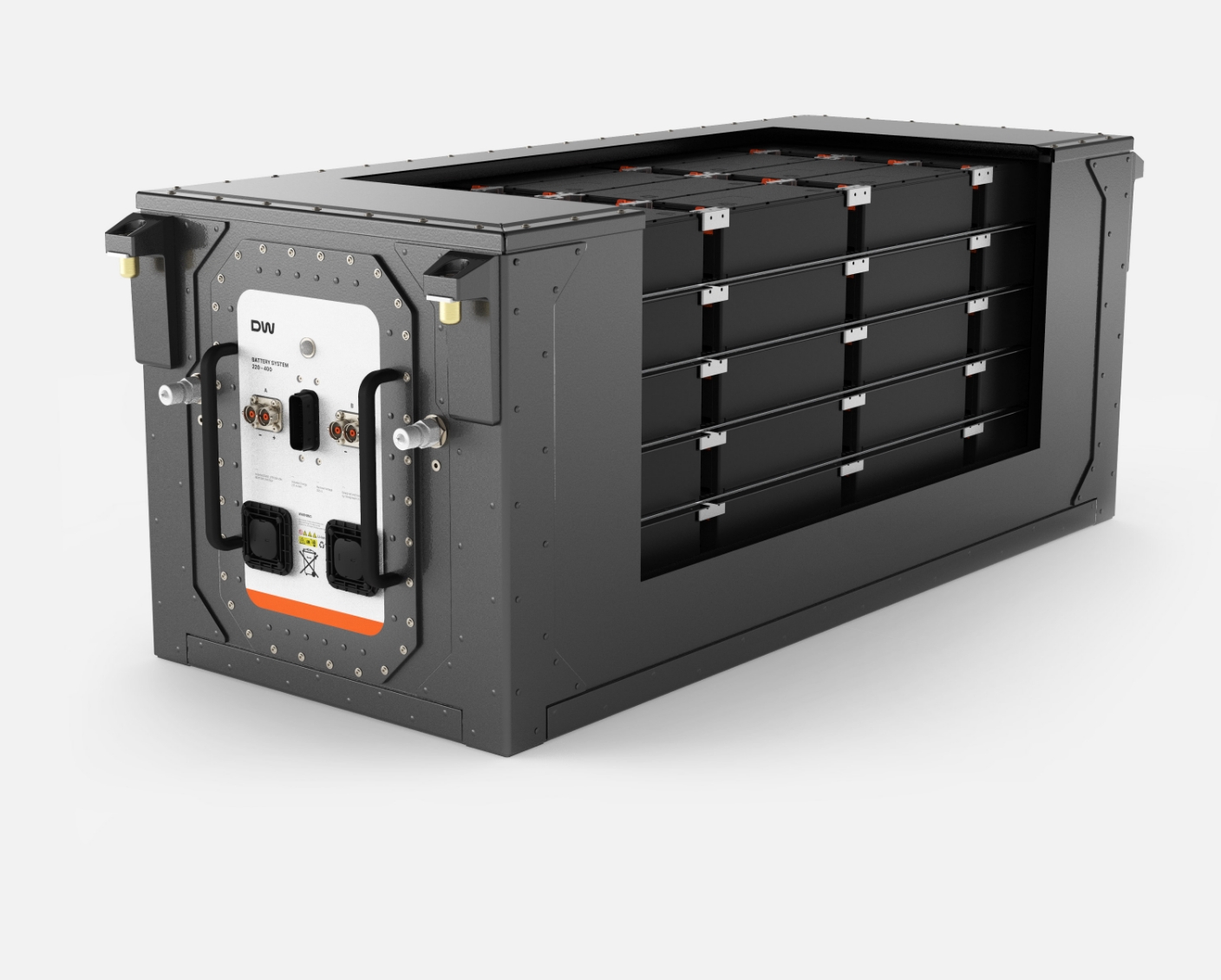

BATTERY SYSTEM 220 – 400

The High-Energy Lithium-Ion Battery System

The ideal storage system for large mobile applications, such as an e-truck or an electrically powered ferry. Switchable in series, maximum safety with the best use of space. With high energy density and final production in Switzerland, our battery systems guarantee safe operation and long service life.

Request

Capacity

217.4 kWh

Energy density

159 Wh/kg

Weight

1367 kg

Electrical data

Installed energy	217.4 kWh
Usable energy	195.7 kWh 90% of the installed energy is released.
Technology cells	Prismatic, Li-lon NMC
Discharge power max. 5s/cont.	777 kW/ 234 kW Depending on SOC and temp.
Charging power max. 5s/cont.	703 kW/ 223 kW Depending on SOC and temp.
Module configuration	4p24s
Nominal voltage	355 V
Voltage min./max.	331 V/408 V min. 0% SOC / max. 100% SOC

Mechanical data

Weight (dry)	1367 kg
Dimensions (LxWxH)	1’718 x 762 x 755 mm
Housing material	Aluminum
Protection class	IP67
Thermal management	Liquid cooled water glycol 50:50
Recommended input temperature	+15 to +30°C
Thickness of insulation on all sides	24 mm Fire retardant, provides mechanical protection and thermal insulation
Mounting	Suspension via 4 x stop bolts (d=30mm) Hold-down with one stop buffer per bolt required on the part of the chassis

Advantages

Compact
Modular
Powerful
Intelligent
Controlled
Safe

Control

Communication via CAN2.0., 24V
Specification of SoC and SoH
Power prediction
Pre-charge
Cell Balancing
Parallel connection of several batteries

Security

Battery degassing unit
Insulation monitoring
Interlock (generator and detector)
Temperature monitoring of all modules and shutdown in case of over- and undertemperature
Emergency stop connection available
