High voltage battery systems

Electrify a vehicle? Scalable, maintenance-free and durable

Do my vehicles meet current and future requirements? How do I electrify my vehicles? Designwerk solves your individual storage challenges quickly, service-oriented and with many years of practical experience from our own e-truck. Our high-voltage battery systems have capacities from 37 kWh to 250 kWh and are interconnected in a single unit or in battery sets with several megawatt hours. With voltage options up to 800 volts, we customize to your installation space and power needs on land and sea. With high energy density and final production in Switzerland, our battery systems guarantee safe operation and long service life.

Ls Project 1 Slide 1For maximum safety and reliability, our batteries consist of high-quality, certified battery modules from the automotive environment. In combination with insulation monitoring and HV interlock, we ensure maximum safety.01Reliably safeSlider Icon Orange LinksSlider Icon Orange Rechts
Ls Project 1 Slide 2 1Thanks to a compact, lightweight and modular design, we adapt our standard battery systems to your special requirements and specific dimensions.02CompactSlider Icon Orange LinksSlider Icon Orange Rechts
Ls Project 1 Slide 1The integrated battery management system (BMS) monitors all parameters of the battery system and specifies the maximum available power depending on the state of charge and temperature.03IntelligentSlider Icon Orange LinksSlider Icon Orange Rechts
Ls Project 1 Slide 1The high continuous currents and peak power ratings enable the batteries to be used even in applications with maximum loads. Thanks to the NMC cell technology, the highest possible energy density is achieved.04PowerfulSlider Icon Orange LinksSlider Icon Orange Rechts
Ls Project 1 Slide 1The battery system we developed is proving its worth every day in our Designwerk trucks in everyday use.05Everyday testedSlider Icon Orange LinksSlider Icon Orange Rechts
Ls Project 1 Slide 1For maximum safety and reliability, our batteries consist of high-quality, certified battery modules from the automotive environment. In combination with insulation monitoring and HV interlock, we ensure maximum safety.Reliably safeSlider Icon Orange LinksSlider Icon Orange Rechts
Ls Project 1 Slide 1Thanks to a compact, lightweight and modular design, we adapt our standard battery systems to your special requirements and specific dimensions.CompactSlider Icon Orange LinksSlider Icon Orange Rechts
Ls Project 1 Slide 1The integrated battery management system (BMS) monitors all parameters of the battery system and specifies the maximum available power depending on the state of charge and temperature.IntelligentSlider Icon Orange LinksSlider Icon Orange Rechts
Ls Project 1 Slide 1The high continuous currents and peak power ratings enable the batteries to be used even in applications with maximum loads. Thanks to the NMC cell technology, the highest possible energy density is achieved.PowerfulSlider Icon Orange LinksSlider Icon Orange Rechts
Ls Project 1 Slide 1The battery system we developed is proving its worth every day in our Designwerk trucks in everyday use.Everyday testedSlider Icon Orange LinksSlider Icon Orange Rechts

Storage solutions that fit you: With the right battery capacity and dimension

Battery System 065-400-T

Battery System 065-400-T

Capacity
63.6 kWh
Energy density
177 Wh/kg
Weight
360 kg

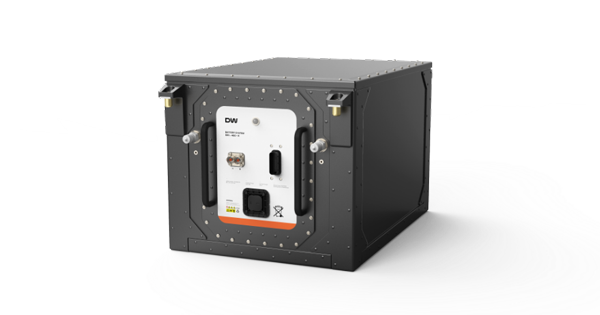

Battery System 125-400-H

Battery System 125-400-H

Capacity
127.1 kWh
Energy density
173 Wh/kg
Weight
735 kg
Battery System 125-800-H

Battery System 125-800-H

Capacity
127.1 kWh
Energy density
173 Wh/kg
Weight
735 kg
Battery System 170-400-L

Battery System 170-400-L

Capacity
170.3 kWh
Energy density
128 Wh/kg
Weight
1244 kg
Battery System 220-400

Battery System 220-400

Capacity
217.4 kWh
Energy density
159 Wh/kg
Weight
1367 kg

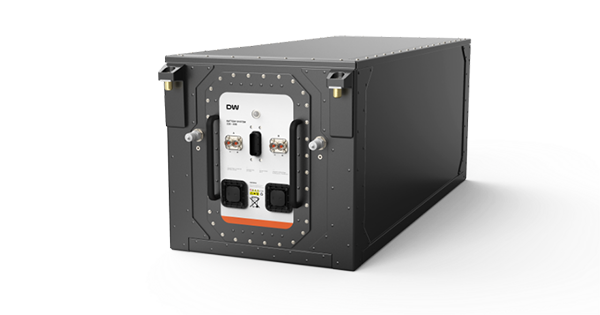

Battery System 250-400

Battery System 250-400

Capacity
254.2 kWh
Energy density
181 Wh/kg
Weight
1405 kg
Battery System 250-800

Battery System 250-800

Capacity
254.2 kWh
Energy density
181 Wh/kg
Weight
1405 kg
