Electric truck mixer

Concrete transportation redefined

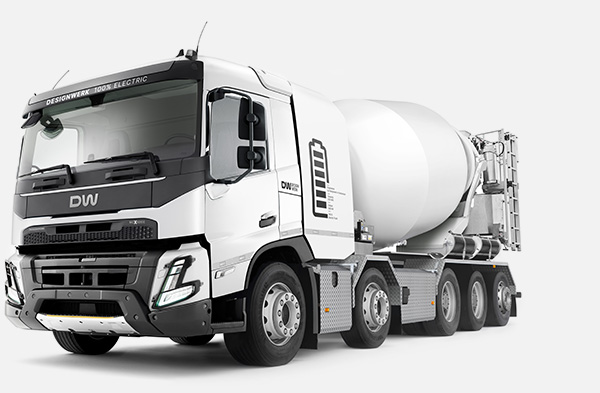

Concrete transportation requires reliability, high payloads and full performance in continuous operation. The electric Designwerk Concrete 8x4R and 10x4R truck mixer meets exactly these requirements: With up to 500 kWh battery capacity, customized axle configurations and space for up to 12 m³ of concrete, it masters even the most demanding applications. As the only 5-axle electric concrete mixer with 500 kWh, it has been specially developed for daily use in the construction industry – powerful, quiet and emission-free.

REQUEST NOW

Advantages

Full daily use with 500 kWh

Compatible with various body manufacturers

LFP and NMC battery system possible

Optional as tridem and tandem 4-axle vehicle

Customer vehicles in use

Elektrischer Fahrmischer Designwerk MC Concrete 10x4R - Vigier

Designwerk MID CAB Concrete 10x4R - Vigier Beton

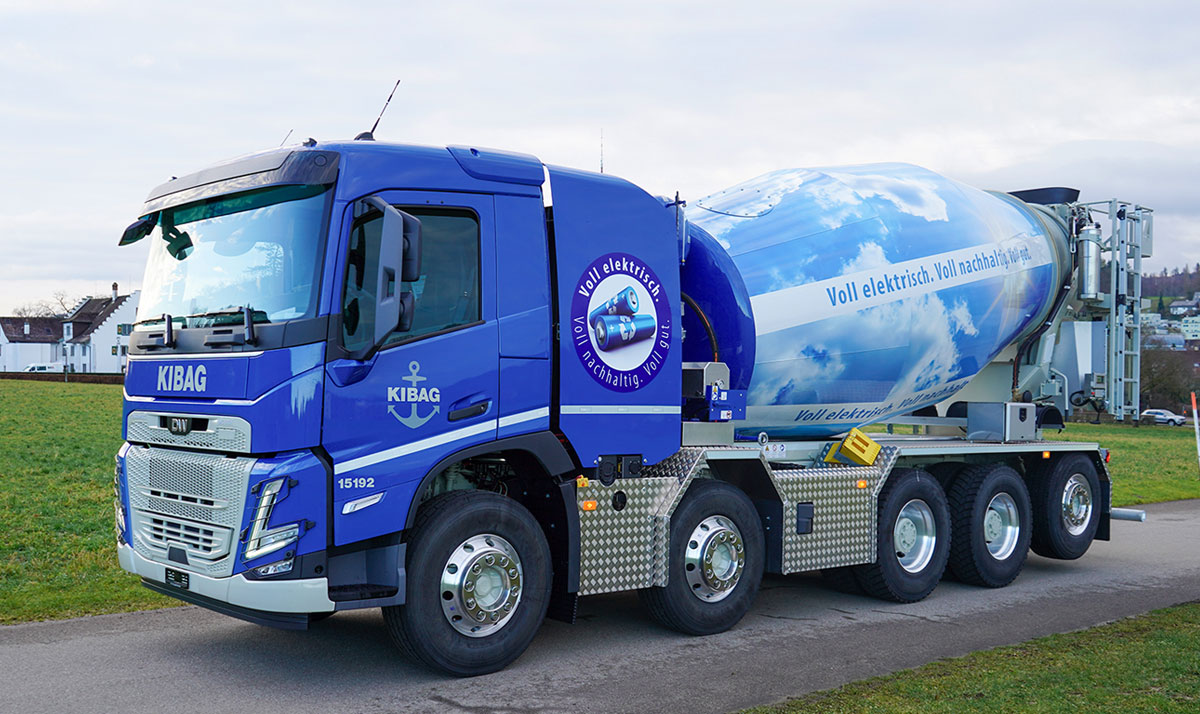

Designwerk MID CAB Concrete 10x4R - KIBAG

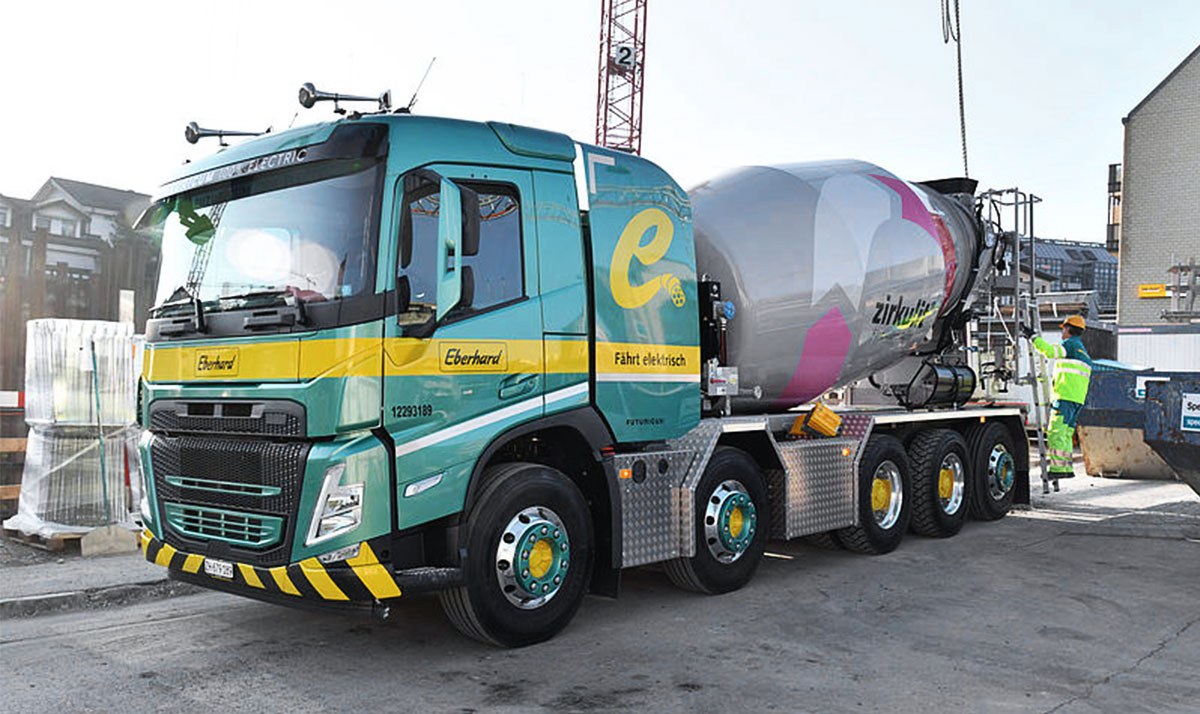

Elektrischer Fahrmischer Designwerk MC Concrete 10x4R - Eberhard

Designwerk MID CAB Concrete 10x4R - Eberhard

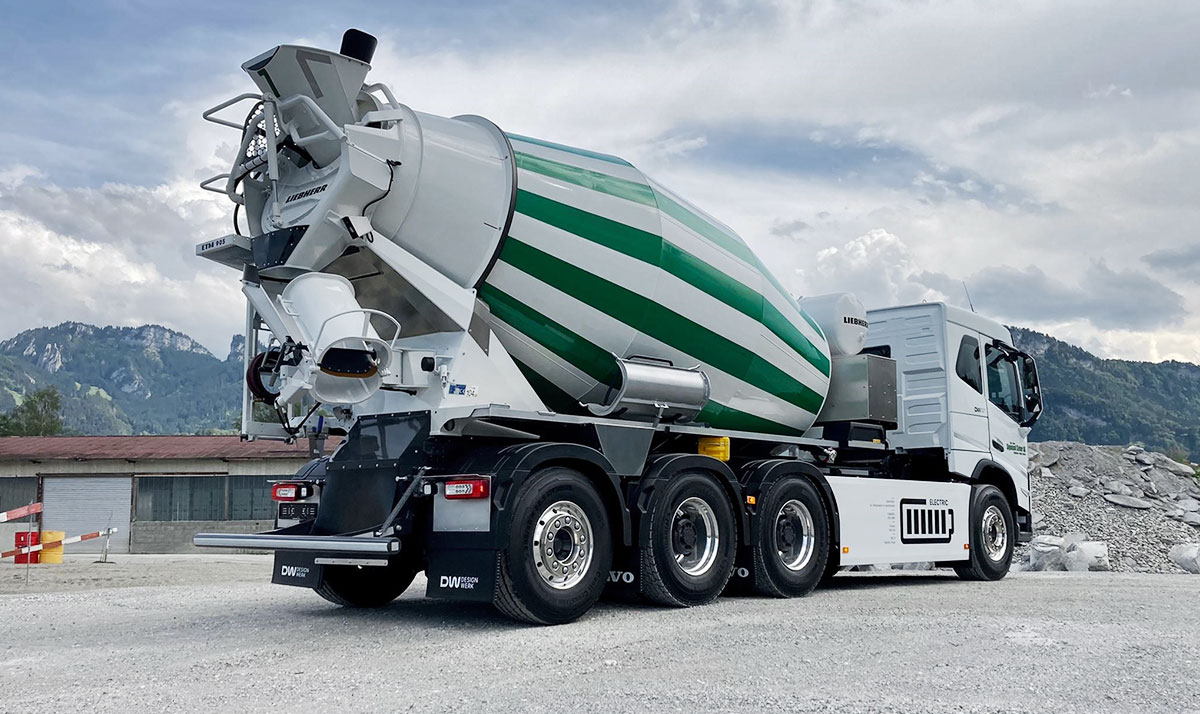

Elektrischer Fahrmischer Designwerk MC Concrete 8x4R - Sigmund Sieber

Designwerk MID CAB Concrete 8x4R - Sigmund Sieber

Technical data

E-truck BATTERY set	340 kWh (LFP)	500 kWh (NMC)
Chassis	8x4R tandem, 2nd axle steerable 8x4R tridem, 4th axle steerable 10x4R, front axles steered, 5th axle liftable and steerable
Cab options	MID CAB, HIGH CAB, MID CAB X
Total weight MID CAB Concrete 8x4R MID CAB Concrete 10x4R	. 32 t + up to 2 t 40 t + up to 2 t
Unladen weight (without body) MID CAB Concrete 8x4R MID CAB Concrete 10x4R	. 12,000 kg 13,400 kg	. 12’200 kg 13’600 kg
Battery weight	2’488 kg	2’710 kg
Effective usable battery capacity	323 kWh	432 kWh
