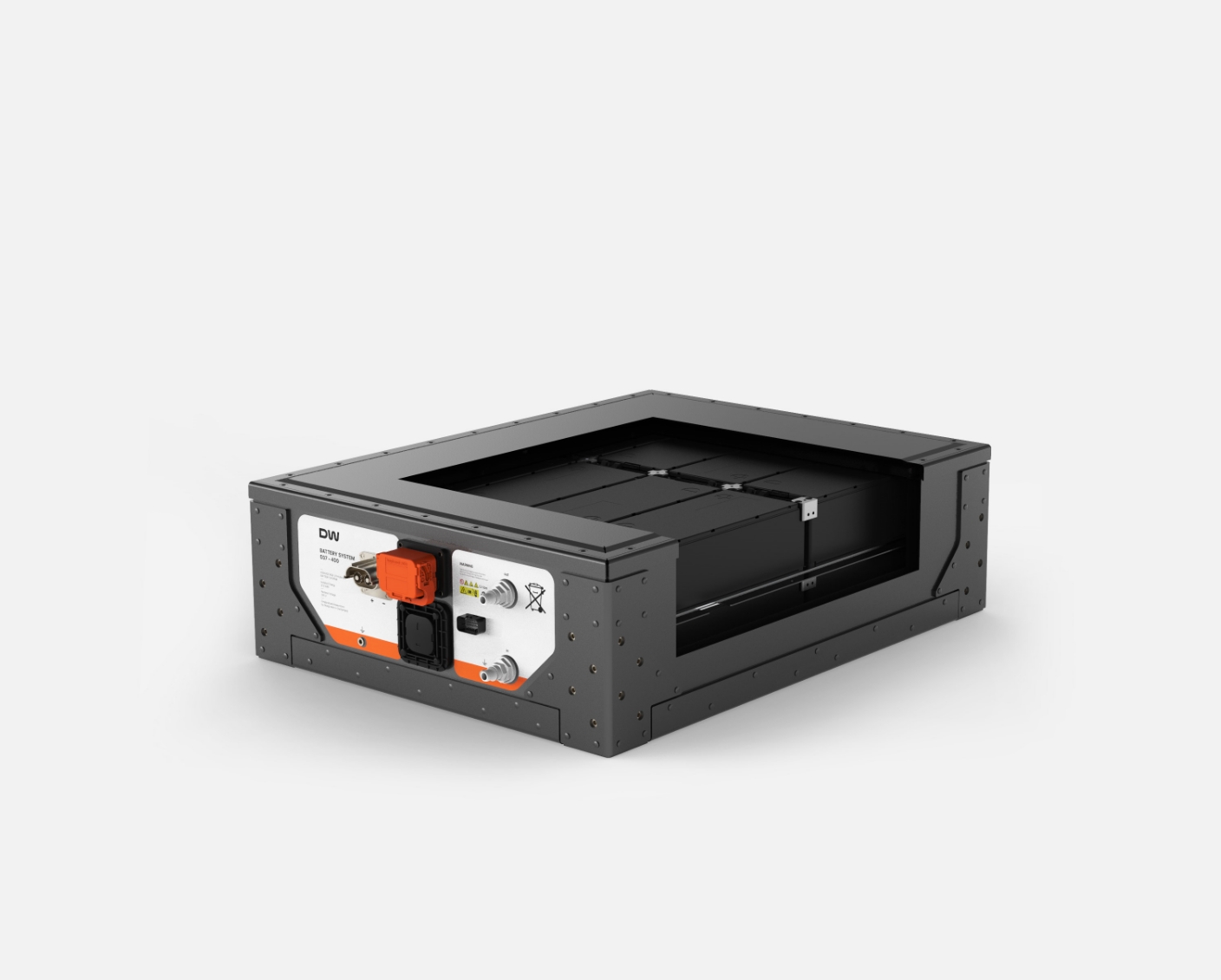

Capacity
37.3 kWh
Energy density
148 Wh/kg
Weight
252 kg

Technical data

Installed energy 37.3 kWh
Usable energy 33.6 kWh
90% of the installed energy is released.
Technology cells Prismatic, Li-lon NMC
Discharge power max. 10s/cont. 133 kW/54 kW
Depending on SOC and temp.
Charging power max. 10s/cont. 121 kW/38 kW
Depending on SOC and temp.
Module configuration 16p1s
Nominal voltage 355 V
Voltage min./max. 330 V/410 V
min. 0% SOC / max. 100% SOC
Weight (dry) 252 kg
Dimensions (LxWxH) 990 x 762 x 297 mm
Housing material Aluminum
Protection class IP67
Thermal management Liquid cooled water glycol 50:50
Recommended input temperature +15 to +30°C
Thickness of insulation on all sides 24 mm
Fire retardant, provides mechanical protection and thermal insulation
Mounting 16 x M6 screws

Compact
Modular
Powerful
Intelligent
Controlled
Safe

Communication via CAN2.0., 24V
Specification of SoC and SoH
Power prediction
Pre-charge
Cell Balancing
Parallel connection of several batteries

Battery degassing unit
Insulation monitoring
Interlock (generator and detector)
Temperature monitoring of all modules and shutdown in case of over- and undertemperature
Emergency stop connection available
